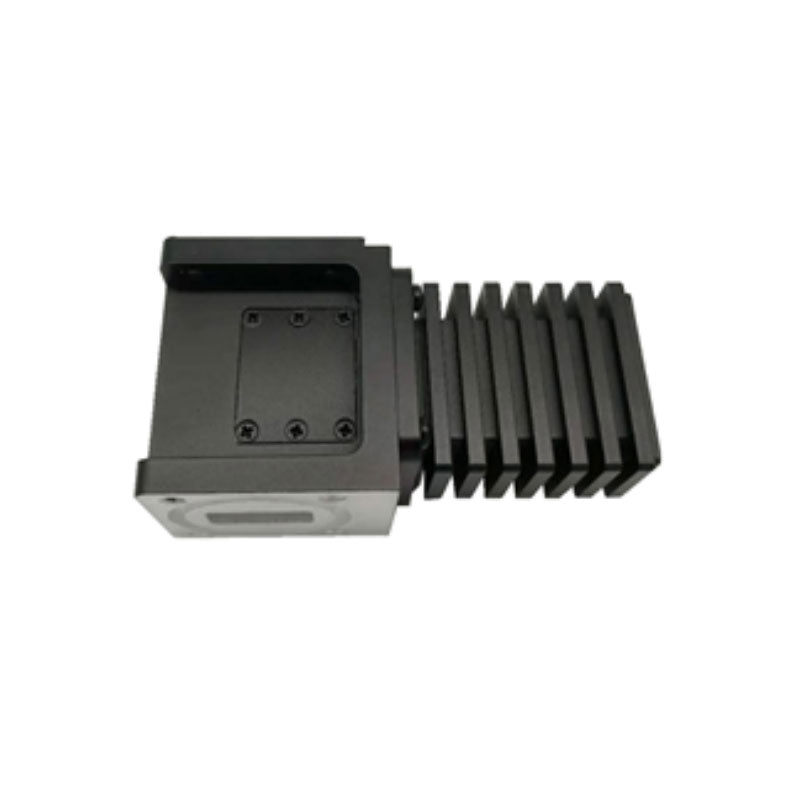

Waveguide Isolator
Waveguide Isolator
| Product Model | Operating Frequency (GHz) | Bandwidth (MHz) | Insertion Loss (dB) | Isolation (dB) | VSWR | Average Power (W) | Peak Power (W) | Waveguide Model | Dimensions (L×W×H, mm) |
|---|---|---|---|---|---|---|---|---|---|
| BG32-099 | 2.7-3.5 | 500 | 0.3 | 20 | 1.2 | 1000 | 5000 | BJ32 | 320×140×76.2 |
| BG40-100 | 3.5-4.5 | 500 | 0.3 | 20 | 1.2 | 1000 | 5000 | BJ40 | 285×120×69.9 |
| BG48-101 | 4.2-5.5 | 500 | 0.3 | 20 | 1.2 | 1500 | 5000 | BJ48 | 220×100×63.5 |
| BG58-085 | 5.0-6.5 | 500 | 0.3 | 20 | 1.2 | 1500 | 5000 | BJ58 | 180×90×61.9 |
| BG70-92 | 5.5-8.0 | 1000 | 0.3 | 20 | 1.2 | 1500 | 5000 | BJ70 | 150×80×49.2 |
| BG84-066 | 7.0-9.5 | 1000 | 0.3 | 20 | 1.2 | 1000 | 5000 | BJ84 | 120×60×47.8 |
| BG100-098 | 8.2-12.4 | FULL | 0.4 | 18 | 1.3 | 500 | 2000 | BJ100 | 137×52×41.4 |
| BG120-096 | 10-15 | FULL | 0.4 | 18 | 1.30 | 500 | 2000 | BJ120 | 110×40×38 |
| BG140-088 | 12-18 | FULL | 0.4 | 18 | 1.30 | 100 | 500 | BJ140 | 90×38×33.3 |
| BG220-118 | 18-26.5 | FULL | 0.4 | 18 | 1.30 | 80 | 300 | BJ220 | 70×30×22.4 |
| BG260-038 | 22-33 | FULL | 0.4 | 17 | 1.35 | 50 | 200 | BJ260 | 57×25×21.1 |
| BG320-089 | 26.5-40 | FULL | 0.5 | 15 | 1.45 | 30 | 150 | BJ320 | 45×22×19.1 |
| BG400-95 | 35-45 | 3000 | 0.5 | 15 | 1.4 | 20 | 100 | BJ400 | 38×15×19.1 |
