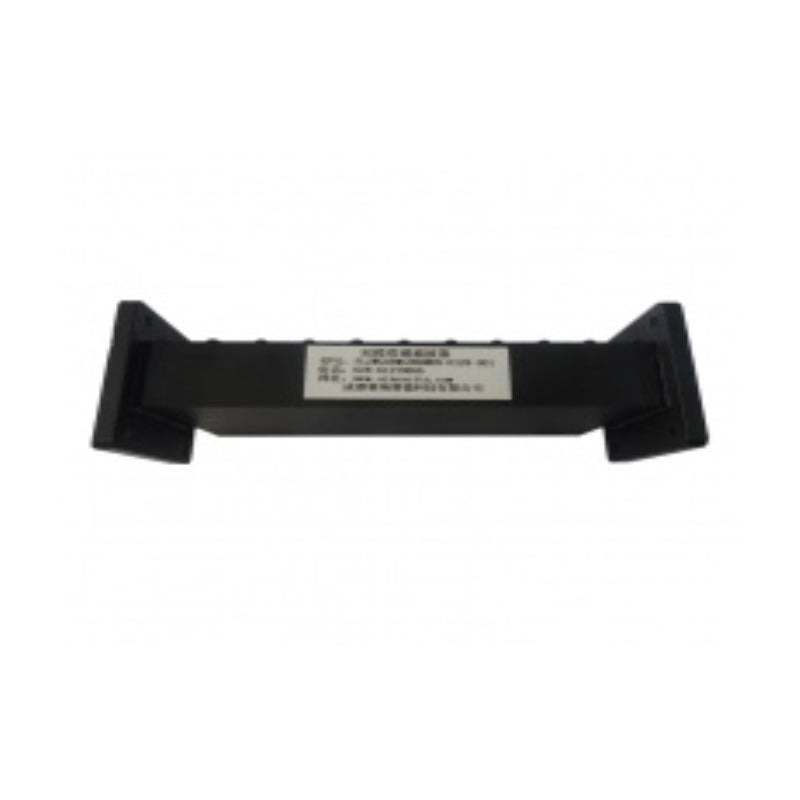

Waveguide Dual Mode Filter
Waveguide Dual Mode Filter
| Product Model | Center Frequency (GHz) | 1dB Bandwidth (GHz) | Insertion Loss (dB) | VSWR | Out-of-Band Suppression (GHz) | Connector | Dimensions (mm) |
|---|---|---|---|---|---|---|---|
| BPF7.8GS-0822 | 7.8 | 0.004 | 3 | 1.5 | ≥30dB @ f0±0.1 | SMA-K | 100×70×25 |
| BPF10.1GS-0459 | 10.1 | 0.02 | 5 | 1.5 | ≥30dB @ f0±0.2 | SMA-K | 73×52×18 |
| BPF10GS-0890 | 10 | 0.02 | 6 | 1.5 | ≥60dB @ f0±0.3 | SMA-K | 116×35×15 |
| BPF20GK-0285 | 20 | 0.03 | 3.5 | 2 | ≥60dB @ f0±1 | 2.92-K | 60×16×12 |
| BPF25GK-0375 | 25 | 0.05 | 5 | 2 | ≥50dB @ f0±0.5 | 2.92-K | 54×24×12 |
| BPF28GK-0442 | 28 | 0.064 | 3 | 2 | ≥60dB @ f0±1.8 | 2.92-K | 50×24×12 |
| BPF30GK-0626 | 30 | 0.02 | 6 | 2 | ≥50dB @ f0±0.1 | 2.92-K | 62×22×11 |
| BPF39.5GK-0627 | 39.5 | 0.02 | 6 | 1.35 | ≥50dB @ f0±0.1 | 2.92-K | 47×19×12 |
| BPF40GU-0628 | 40 | 0.02 | 6 | 2 | ≥50dB @ f0±0.1 | 2.4-K | 47×19×10 |
| BPF50GV-0708 | 50 | 0.1 | 5 | 2 | ≥20dB @ f0±0.1 | 1.85-K | 43×24×10 |
