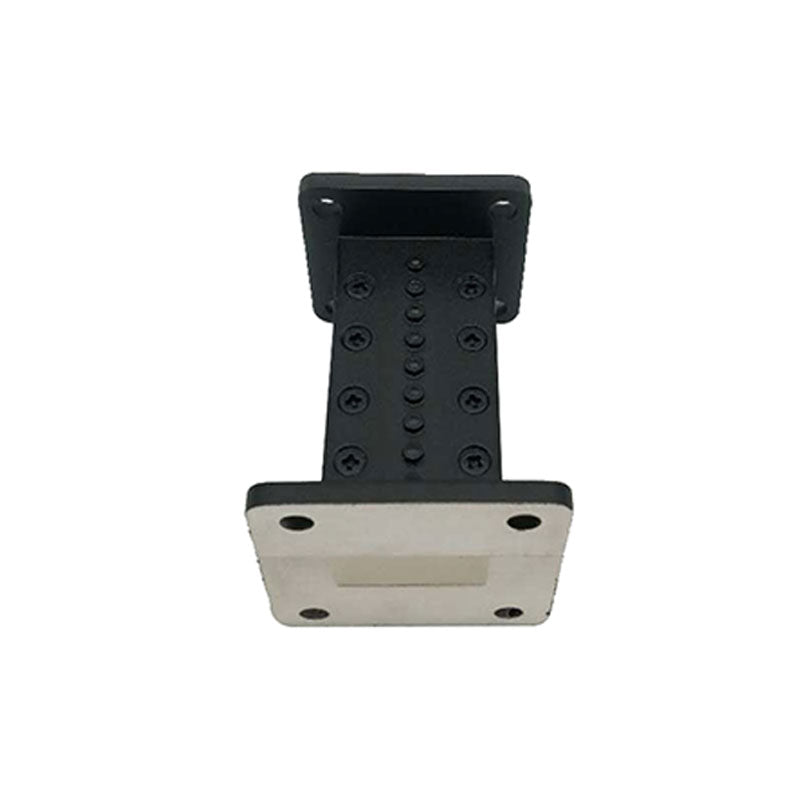

Waveguide Bandpass Filter
Waveguide Bandpass Filter
| Product Model | Operating Frequency (GHz) | Insertion Loss (dB) | VSWR | Rejection Point 1 (GHz) | Rejection Point 2 (GHz) | Connector | Dimensions (mm) |
|---|---|---|---|---|---|---|---|
| BPF3.7-4.2GW-0097 | 3.7-4.2 | 1.2 | 1.5 | 3.2 (65dB) | 4.4 (65dB) | BJ84 | 145×100×70 |
| BPF7.916-8.504GW-0020 | 7.916-8.504 | 0.3 | 1.2 | 7.348 (60dB) | 9.252 (60dB) | BJ84 | 105×46×35 |
| BPF7.4-8.14GW-0013 | 7.4-8.14 | 0.7 | 1.2 | 6.94 (60dB) | 8.7 (60dB) | BJ84 | 89×46×35 |
| BPF7.59-8.13GW-0074 | 7.59-8.13 | 0.4 | 1.2 | 7.41 (30dB) | 8.54 (30dB) | BJ84 | 68×68×48 |
| BPF7.62-8.67GW-0043 | 7.62-8.67 | 1 | 1.2 | 6.4 (40dB) | 8.96 (60dB) | BJ84 | 39×48×48 |
| BPF15.4-15.7GW-0902 | 15.4-15.7 | 0.3 | 1.5 | 14.8 (25dB) | 16.4 (25dB) | BJ180 | 70×34×34 |
| BPF17.6-21.3GW-0282 | 17.6-21.3 | 1 | 1.3 | 15.75 (60dB) | 23.15 (50dB) | BJ220 | 61×22.5×24 |
| BPF19.7-20.2GW-0240 | 19.7-20.2 | 0.3 | 1.2 | 17.964 (60dB) | 22.514 (60dB) | BJ220 | 32×23×23 |
| BPF29.14-30.4GW-0125 | 29.14-30.4 | 1.3 | 1.6 | 28.51 (60dB) | 31.36 (60dB) | BJ320 | 53×20×20 |
| BPF29.4-31GW-0763 | 29.4-31 | 2 | 1.4 | 27 (60dB) | 31.5 (25dB) | BJ320 | 49×20×25 |
| BPF29.9-31.1GW-0454 | 29.9-31.1 | 3 | 1.8 | 28.9 (50dB) | 33.45 (50dB) | BJ320 | 48×20×20 |
| BPF35.13-35.83GW-0029 | 35.13-35.83 | 2 | 2 | 32.39 (60dB) | 35.87 (50dB) | BJ320 | 34×19×19 |
| BPF38GW-0108 | 37.67-38.33 | 1.5 | 2 | 37.41 (60dB) | 38.61 (60dB) | BJ320 | 47×21×20 |
| BPF57-65GW-0524 | 57-65 | 2 | 2 | 54 (60dB) | 68 (40dB) | BJ620 | 36×20×20 |
| BPF82-92GW-0525 | 82-92 | 2 | 2 | 79 (60dB) | 95 (40dB) | BJ900 | 38×20×20 |
