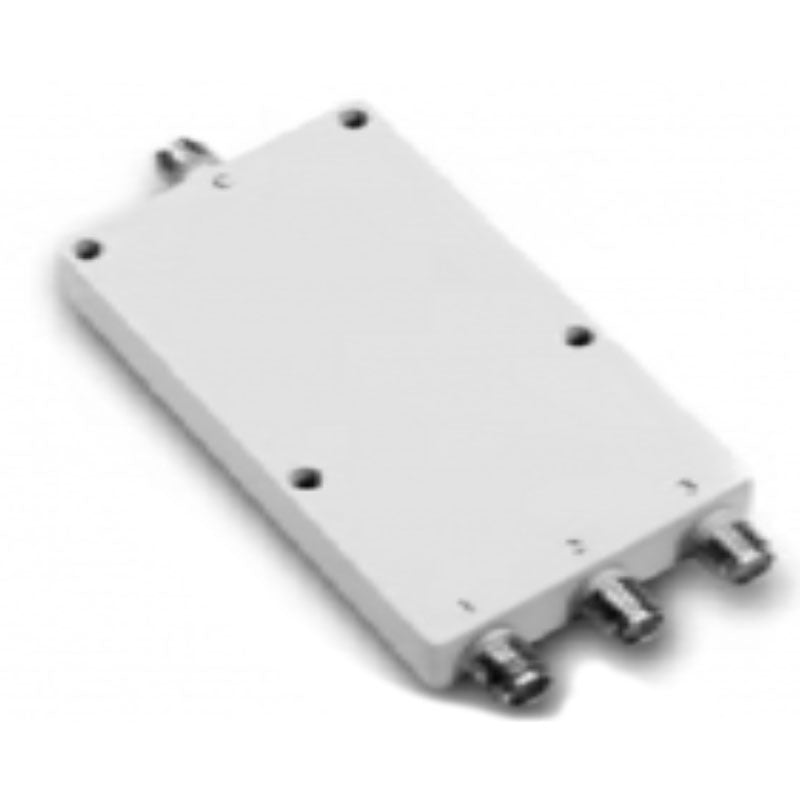

Stripline Power Divider
Stripline Power Divider
| Model | Operating Frequency (GHz) | Channels | Insertion Loss (dB) | Isolation (dB) | VSWR | Amplitude Balance (dB) | Phase Balance (deg) | Connector | Power (W) |
|---|---|---|---|---|---|---|---|---|---|
| PDW0.5-6G-2 | 0.5-6 | 2 | 0.8 | 18 | 1.4 | ±0.20 | ±3 | SMA-K | 50 |
| PDW0.5-6G-4 | 0.5-6 | 4 | 1.8 | 16 | 1.6 | ±0.30 | ±4 | SMA-K | 50 |
| PDW1-2G-2 | 1-2 | 2 | 0.35 | 20 | 1.2 | ±0.20 | ±2 | SMA-K | 50 |
| PDW1-2G-4 | 1-2 | 4 | 0.6 | 20 | 1.3 | ±0.30 | ±3 | SMA-K | 50 |
| PDW2-4G-2 | 2-4 | 2 | 0.35 | 20 | 1.25 | ±0.20 | ±2 | SMA-K | 50 |
| PDW2-4G-4 | 2-4 | 4 | 0.6 | 20 | 1.3 | ±0.30 | ±3 | SMA-K | 50 |
| PDW4-8G-2 | 4-8 | 2 | 0.5 | 20 | 1.25 | ±0.30 | ±3 | SMA-K | 50 |
| PDW4-8G-4 | 4-8 | 4 | 0.8 | 20 | 1.3 | ±0.30 | ±3 | SMA-K | 50 |
| PDW1-8G-2 | 1-8 | 2 | 1.2 | 16 | 1.4 | ±0.30 | ±6 | SMA-K | 50 |
| PDW1-8G-4 | 1-8 | 4 | 2.1 | 15 | 1.5 | ±0.40 | ±8 | SMA-K | 50 |
| PDW2-18G-2 | 2-18 | 2 | 1.2 | 16 | 1.5 | ±0.30 | ±5 | SMA-K | 50 |
| PDW2-18G-4 | 2-18 | 4 | 2.2 | 16 | 1.65 | ±0.60 | ±10 | SMA-K | 50 |
| PDW6-18G-2 | 6-18 | 2 | 0.7 | 18 | 1.5 | ±0.40 | ±5 | SMA-K | 50 |
| PDW18-26.5G-2 | 18-26.5 | 2 | 0.8 | 18 | 1.5 | ±0.40 | ±8 | 2.92-K | 50 |
| PDW26.5-40G-2 | 26.5-40 | 2 | 1.5 | 15 | 2 | ±0.50 | ±10 | 2.92-K | 50 |
