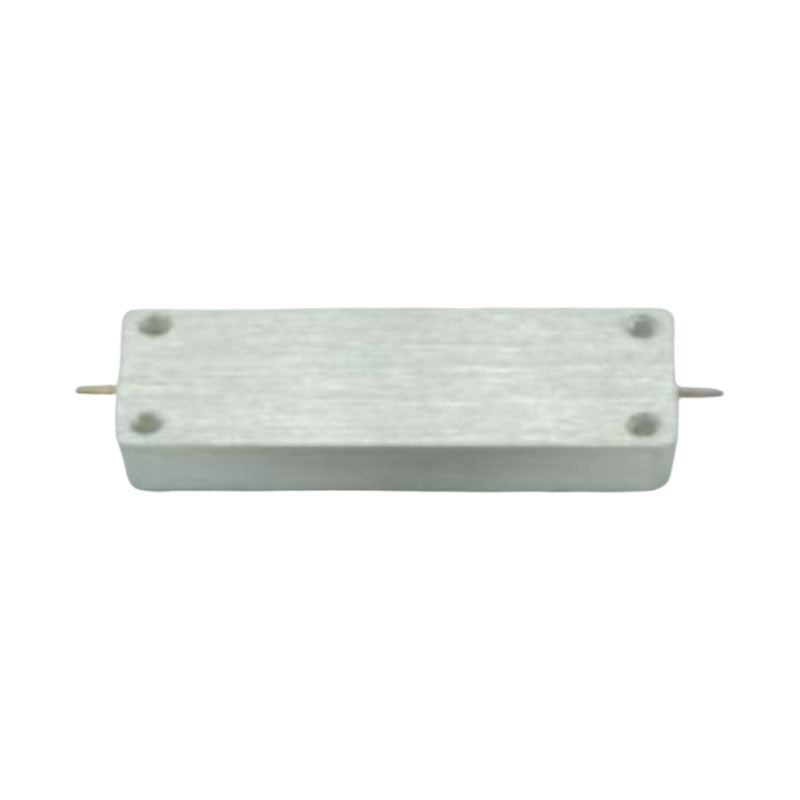

LC Bandpass Filter
LC Bandpass Filter
| Model | Center Frequency (MHz) | Bandwidth (MHz) | Out-of-Band Rejection (dB) | Insertion Loss (dB) | Ripple (dB) | VSWR |
|---|---|---|---|---|---|---|
| SNSDB13U1L-M1 | 13 | 1 | ≥45dB @ 11.5MHz & 14.5MHz | ≤6 | ≤2 | ≤1.5 |
| SNSDB30U2.5L-M1 | 30 | 2.5 | ≥45dB @ 26MHz & 34MHz | ≤6 | ≤2 | ≤1.5 |
| SNSDB60U5L-M1 | 60 | 5 | ≥45dB @ 52MHz & 68MHz | ≤6 | ≤2 | ≤1.5 |
| SNSDB80U7L-M1 | 80 | 7 | ≥45dB @ 67.5MHz & 92.5MHz | ≤5 | ≤2 | ≤1.5 |
| SNSDB100U8L-M1 | 100 | 8 | ≥45dB @ 87MHz & 113MHz | ≤5 | ≤2 | ≤1.5 |
| SNSDB160U14L-M1 | 160 | 14 | ≥45dB @ 135MHz & 185MHz | ≤4.5 | ≤1.5 | ≤1.5 |
| SNSDB280U20L-M1 | 280 | 24 | ≥45dB @ 235MHz & 325MHz | ≤4 | ≤1.5 | ≤1.5 |
| SNSDB540U45L-M1 | 540 | 45 | ≥45dB @ 465MHz & 615MHz | ≤3.5 | ≤1.2 | ≤1.5 |
| SNSDB780U65L-M1 | 780 | 65 | ≥45dB @ 660MHz & 900MHz | ≤3.5 | ≤1.2 | ≤1.5 |
| SNSDB930U70L-M1 | 930 | 70 | ≥45dB @ 800MHz & 1060MHz | ≤3.5 | ≤1.2 | ≤1.5 |
| SNSDB1200U100L-M1 | 1200 | 100 | ≥45dB @ 1050MHz & 1350MHz | ≤3 | ≤1 | ≤1.5 |
| SNSDB1600U130L-M1 | 1600 | 130 | ≥45dB @ 1400MHz & 1800MHz | ≤3 | ≤1 | ≤1.5 |
| SNSDB1800U130L-M1 | 1800 | 150 | ≥45dB @ 1570MHz & 2030MHz | ≤3 | ≤1 | ≤1.5 |
| SNSDB2000U130L-M1 | 2000 | 180 | ≥45dB @ 1700MHz & 2300MHz | ≤3 | ≤1 | ≤1.5 |
| SNSDB2400U200L-M1 | 2400 | 200 | ≥45dB @ 2100MHz & 2700MHz | ≤3 | ≤1 | ≤1.5 |
| SNSDB3000U280L-M1 | 3000 | 280 | ≥45dB @ 2550MHz & 3450MHz | ≤3 | ≤1 | ≤1.5 |
| SNSDB3500U300L-M1 | 3500 | 300 | ≥45dB @ 2900MHz & 4100MHz | ≤3 | ≤1 | ≤1.5 |
| SNSDB3800U350L-M1 | 3800 | 350 | ≥45dB @ 3100MHz & 4500MHz | ≤3 | ≤1 | ≤1.5 |
