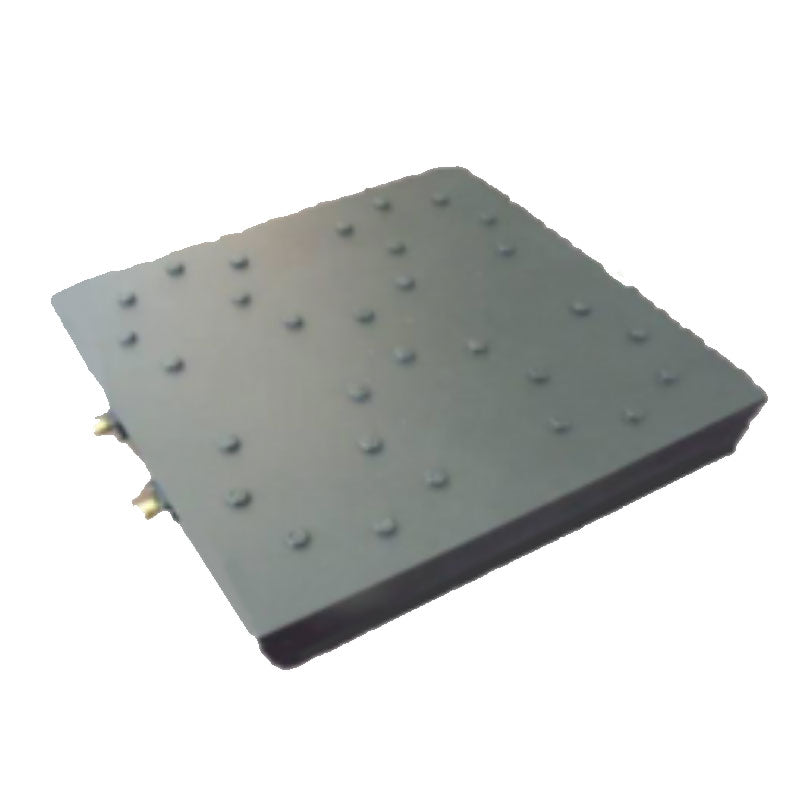

Cavity Duplexer
Cavity Duplexer
| Model | Uplink Frequency (GHz) | Downlink Frequency (GHz) | Insertion Loss (dB) | VSWR | Isolation (dB) | Connector | Dimensions (mm) |
|---|---|---|---|---|---|---|---|
| DP611/687MS-1369 | 0.598-0.624 | 0.674-0.7 | 0.8 | 1.4 | 80 | SMA-K | 165×64×48 |
| DP960-1460MN-0910 | 0.96-1.213 | 1.41-1.46 | 1 | 1.5 | 70 | N-K | 111×105×46 |
| DP1268/1575MS-1226 | 1.258-1.278 | 1.573-1.577 | 1.5 | 1.5 | 60 | SMA-K | 148×72×36 |
| DP1.465G/1.69GS-2006 | 1.43-1.5 | 1.67-1.71 | 1 | 1.3 | 60 | SMA-K | 90×70×25 |
| DP1.995/2.185GS-1976 | 1.98-2.01 | 2.17-2.2 | 1 | 1.2 | 70 | SMA-K | 89×41×23 |
| DP2.102/2.282GS-1398 | 2.101-2.103 | 2.281-2.283 | 1 | 1.5 | 95 | SMA-K | 75×55×14 |
| DP2.7-3.3GS-0946 | 2.7-3 | 3.2-3.3 | 1 | 1.5 | 85 | SMA-K | 78×55×20 |
| DP4.7/4.9GS-1318 | 4.4-4.6 | 4.8-5 | 1.5 | 1.4 | 50 | SMA-K | 88×46×18 |
| DP4.425/4.875GS-1757 | 5.45-5.5 | 5.091-5.24 | 1.5 | 1.5 | 90 | SMA-K | 56×24×12 |
| DP5.6-5.9GS-1058 | 5.6-5.7 | 5.8-5.9 | 0.8 | 1.28 | 85 | SMA-K | 107×40×50 |
| DP6-6.95GS-1203 | 6-6.22 | 6.95-7.07 | 1 | 1.5 | 80 | SMA-K | 90×82×17 |
| DP6-7.35GS-1202 | 6.38-6.6 | 7.23-7.35 | 1 | 1.5 | 80 | SMA-K | 90×82×17 |
| DP7.8-11GS-1051 | 7.4-8.2 | 10.6-11.4 | 3 | 1.5 | 70 | SMA-K | 61×25×12 |
| DP14.2-16.2GS-0351 | 14.2-14.8 | 15.6-16.2 | 0.7 | 1.25 | 95 | SMA-K | 100×30×30 |
