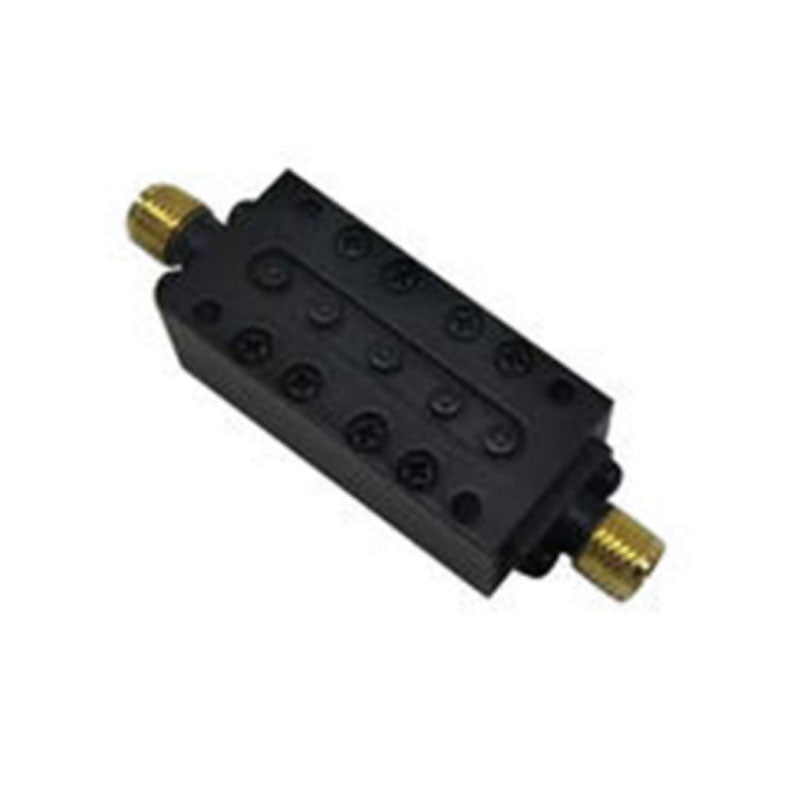

Cavity Bandpass Filter

Model	Operating Frequency (GHz)	Insertion Loss (dB)	VSWR	Rejection Point f1 (GHz)	Rejection Point f2 (GHz)	Connector	Dimensions (mm)
BPF585-615MS-0476	0.585-0.61	0.5	2	0.45 (60dB)	0.75 (60dB)	SMA-K	113×50×20
BPF0.71-0.73GS-0674	0.71-0.73	2.5	1.3	0.695 (45dB)	0.735 (50dB)	SMA-K	108×65×35
BPF0.8-1.6GS-0644	0.8-1.6	5	2.2	0.75 (40dB)	1.65 (50dB)	SMA-K	104×51×30
BPF1.2-1.4GN-0906	1.2-1.4	0.3	1.35	0.8 (50dB)	2-6 (50dB)	N-K	88×64×40
BPF1.95-2.05GS-0663	1.95-2.05	2	1.5	1.9 (40dB)	2.1 (40dB)	SMA-K	41×84×23
BPF2.4-3.6GS-0586	2.4-3.6	1	1.5	2 (30dB)	4 (30dB)	SMA-K	48×24×10
BPF4-6GS-0563	4-6	1	1.5	3.4 (40dB)	7-15 (40dB)	SMA-K	45×22×9
BPF8-12GS-0836	8-12	1	1.8	7 (45dB)	13-20 (30dB)	SMA-K	140×20×20
BPF12.7-13.3GS-0493	12.7-13.3	1.5	1.5	12.3 (40dB)	13.7 (40dB)	SMA-K	68×17×11
BPF12-18GS-0192	12-18	1	1.2	8.2 (50dB)	20.8 (50dB)	SMA-K	68×17×11
BPF18-26.5GK-0990	18-26.5	1	1.5	5-12 (60dB)	36-40 (60dB)	2.92-K	39×18×13
BPF27.5-31GK-0284	27.5-31	1.5	2	26.8 (40dB)	31.9 (60dB)	2.92-K	78×16×12
BPF33-40GK-0544	33-40	1	1.5	30 (85dB)	43 (85dB)	2.92-K	49×14×11
BPF43.5-45.5GU-0337	43.5-45.5	3	2	42.8 (50dB)	46.2 (50dB)	2.4-K	50×13×13
BPF58-62GV-0814	58-62	1	1.5	55 (35dB)	65 (35dB)	1.85-K	40×10×10
