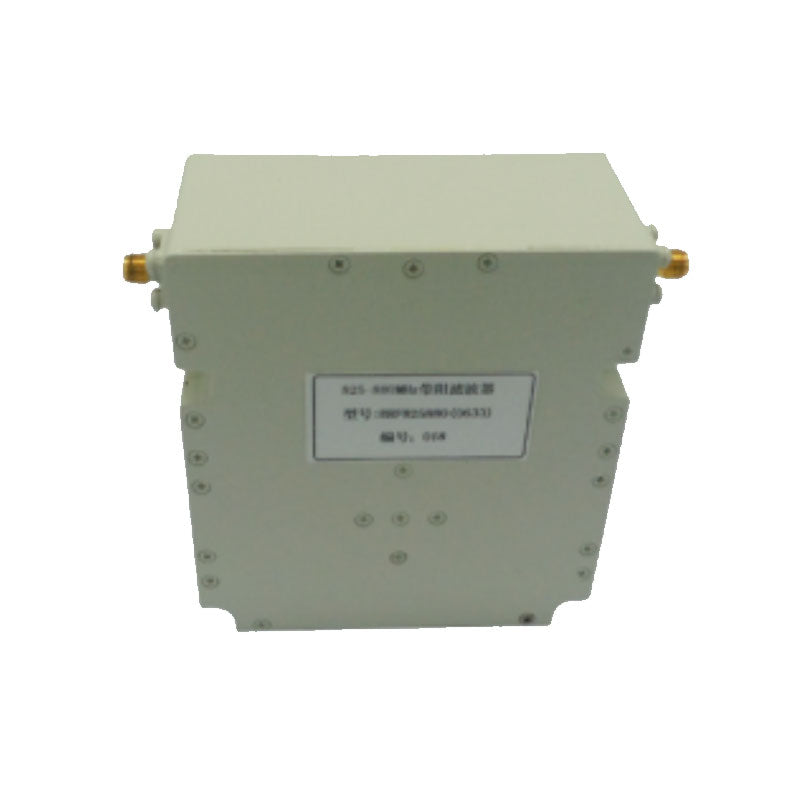

Cavity Band Rejection Filter
Cavity Band Rejection Filter
| Model | Stopband Frequency (MHz) | Stopband Suppression (dB) | Passband Frequency 1 (MHz) | Passband Frequency 2 (MHz) | Insertion Loss (dB) | Connector | Dimensions (mm) |
|---|---|---|---|---|---|---|---|
| BSF791-821MN-0358 | 791-821 | 60 | DC-781 | 831-2500 | 3 | N-K | 147×147×51 |
| BSF815-880MS-0861 | 815-880 | 45 | DC-780 | 920-1500 | 2.5 | SMA-K | 110×110×45 |
| BSF824-849MS-0381 | 824-849 | 40 | DC-814 | 859-3500 | 2 | N-K | 192×87×53 |
| BSF880-915MN-0382 | 880-915 | 40 | DC-870 | 925-3500 | 2 | N-K | 95×99×52 |
| BSF1240-1260MS-0938 | 1240-1260 | 50 | DC-1230 | 1270-4000 | 2 | SMA-K | 340×38×32 |
| BSF1350-1450MS-0567 | 1350-1450 | 50 | DC-1300 | 1500-2000 | 1 | SMA-K | 92×65×33 |
| BSF1447-1467MN-0696 | 1447-1467 | 60 | DC-1422 | 1492-5000 | 3 | N-K | 193×30×34 |
| BSF1550-1610MS-0385 | 1550-1610 | 60 | 100-400 | 2200-2300 | 1 | N-K | 137×29×27 |
| BSF1710-1785MN-0383 | 1710-1785 | 40 | DC-1690 | 1800-3500 | 2 | N-K | 223×40×36 |
| BSF1805-1880MN-0693 | 1805-1880 | 60 | DC-1775 | 1910-4500 | 3 | N-K | 182×44×35 |
| BSF1850-1910MN-0384 | 1850-1910 | 40 | DC-1830 | 1930-3500 | 2 | N-K | 182×38×33 |
| BSF1880-1920MS-0776 | 1880-1920 | 65 | DC-1855 | 1945-2500 | 3 | SMA-F | 215×40×40 |
| BSF2300-2400MS-0205 | 2300-2400 | 60 | DC-2234 | 2480-4000 | 2.5 | SMA-K | 193×47×45 |
| BSF2496-2590MS-0865 | 2496-2590 | 40 | DC-2300 | 2700-4000 | 1.5 | SMA-K | 200×50×42 |
| BSF2500-2570MS-0934 | 2500-2570 | 60 | 10-2450 | 2600-6000 | 1 | SMA-F | 300×35×35 |
| BSF5150-5850MN-0899 | 5150-5850 | 50 | DC-4850 | 6150-12750 | 3 | N-K | 200×25×25 |
