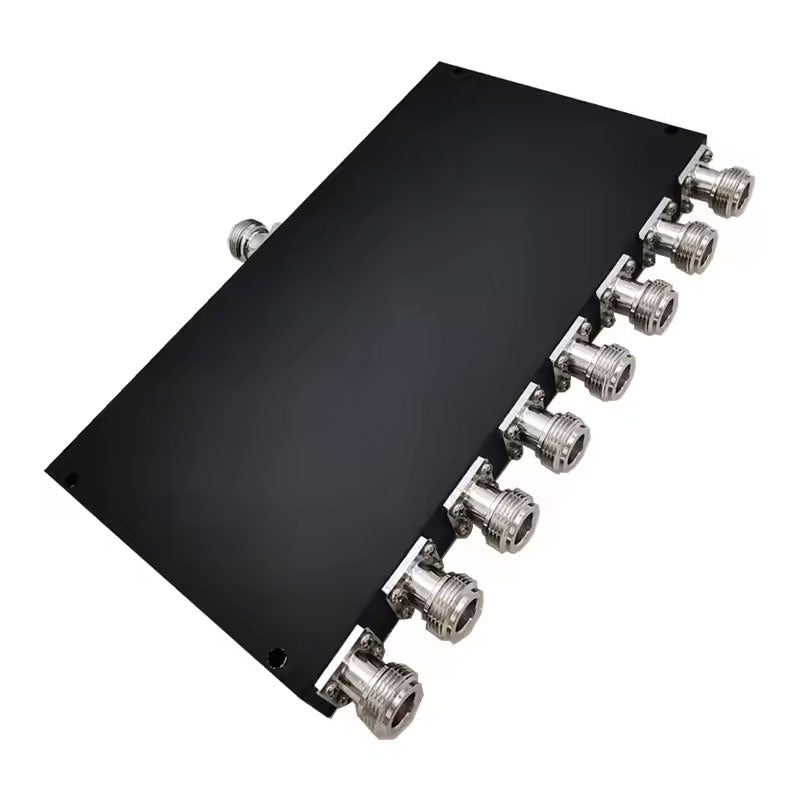

8 Way Power Divider
8 Way Power Divider
| Model | Operating Frequency (GHz) | VSWR | Insertion Loss (dB) | Amplitude Balance (dB) | Phase Balance (deg) | Isolation (dB) | Dimensions (L×W×H, cm) |
|---|---|---|---|---|---|---|---|
| SNSD-208-005080 | 0.5-8 | 1.5 | 5.8 | ±0.4 | ±4 | 16 | 16.256×14.732×1.27 |
| SNSD-208-005180 | 0.5-18 | 1.5 | 6.7 | ±0.4 | ±5 | 16 | 16.256×14.732×1.27 |
| SNSD-208-005265 | 0.5-26.5 | 1.6 | 7.7 | ±0.5 | ±5 | 16 | 16.256×14.732×1.27 |
| SNSD-208-005400 | 0.5-40 | 1.7 | 10.4 | ±0.6 | ±6 | 16 | 16.256×14.732×1.27 |
| SNSD-208-010180 | 1-18 | 1.6 | 5.1 | ±0.4 | ±5 | 16 | 10.922×13.716×1.27 |
| SNSD-208-010265 | 1-26.5 | 1.75 | 5.8 | ±0.4 | ±5 | 16 | 10.922×13.716×1.27 |
| QWP08N020180-01GC | 2-18 | 1.5 | 3.2 | ±0.2 | ±5 | 16 | 8×9.8×1.2 |
| QWP08N060180-01GC | 6-18 | 1.6 | 2.6 | ±0.3 | ±5 | 17 | 4.6×9.8×1.2 |
| SNSD-208-060180 | 6-18 | 1.5 | 2.4 | ±0.3 | ±3 | 16 | 4.953×10.922×1.27 |
| SNSD-208-060265 | 6-26.5 | 1.6 | 2.6 | ±0.4 | ±4 | 16 | 4.953×10.922×1.27 |
| SNSD-208-060400 | 6-40 | 1.7 | 3.4 | ±0.5 | ±5 | 16 | 4.953×10.922×1.27 |
| SNSD-208-100265 | 10-26.5 | 1.6 | 2.6 | ±0.4 | ±4 | 16 | 4.953×10.922×1.27 |
| SNSD-208-100400 | 10-40 | 1.7 | 3.4 | ±0.5 | ±5 | 16 | 4.953×10.922×1.27 |
| QWP08N160200-01GC | 16-20 | 1.6 | 1.9 | ±0.4 | ±5 | 18 | 3.5×9.8×1.2 |
| SNSD-208-180265 | 18-26.5 | 1.6 | 2.4 | ±0.4 | ±4 | 18 | 4.699×10.668×1.27 |
| SNSD-208-180400 | 18-40 | 1.7 | 3.4 | ±0.5 | ±5 | 16 | 4.699×10.668×1.27 |
| QWP08N200300-01GC | 20-30 | 1.6 | 2.5 | ±0.5 | ±6 | 18 | 3.5×9.8×1.2 |
