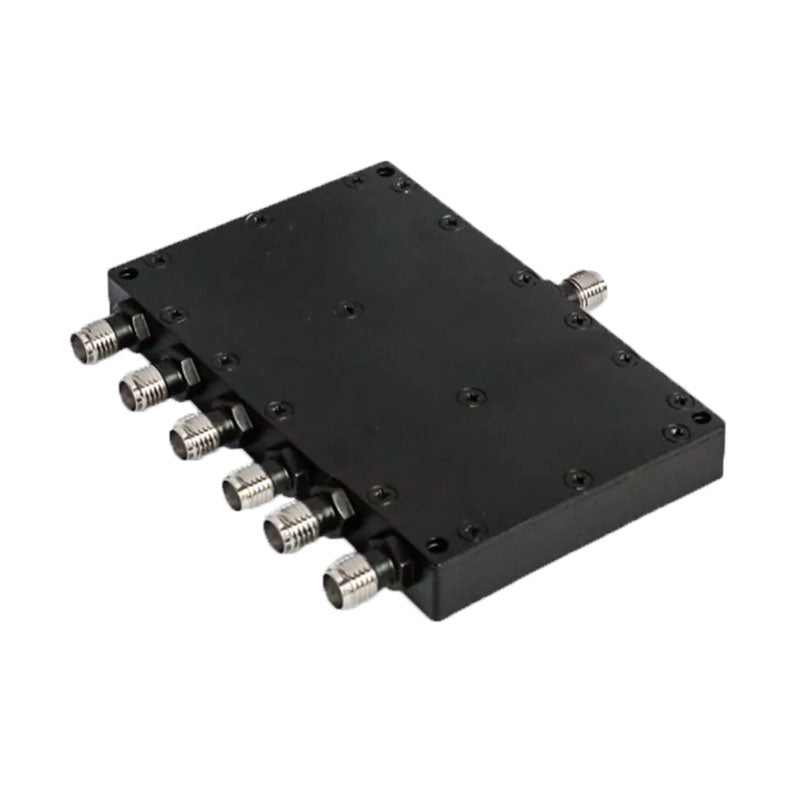

6 Way Power Divider

Model	Operating Frequency (GHz)	VSWR	Insertion Loss (dB)	Amplitude Balance (dB)	Phase Balance (deg)	Isolation (dB)	Dimensions (L×W×H, cm)
SNSD-206-008180	0.8-18	1.7	4	±0.8	±8	16	16.51×7.747×1.27
SNSD-206-180265	18-26.5	1.6	1.6	±0.4	±5	17	5.715×8.89×1.27
SNSD-206-180400	18-40	1.7	2.1	±0.5	±6	16	5.715×8.89×1.27
