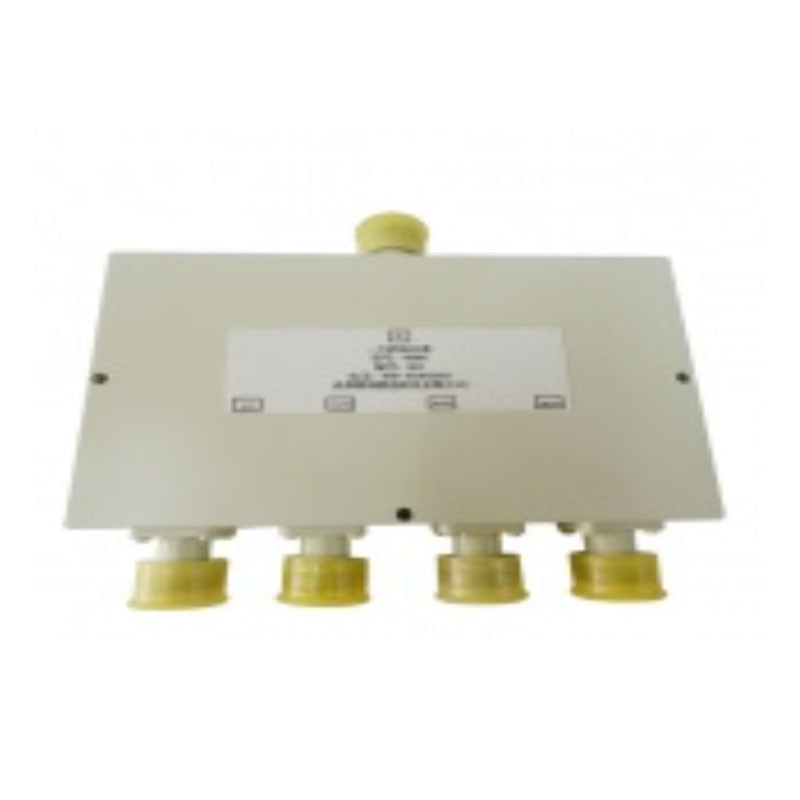

4 Way Power Divider
4 Way Power Divider
| Model | Operating Frequency (GHz) | VSWR | Insertion Loss (dB) | Amplitude Balance (dB) | Phase Balance (deg) | Isolation (dB) | Dimensions (L×W×H, cm) |
|---|---|---|---|---|---|---|---|
| QWP04N001001-01GC | 0.09-0.11 | 1.4 | 0.75 | ±0.2 | ±6 | 20 | 3.5×5.6×1.2 |
| SNSD-204-003180 | 0.3-18 | 1.5 | 7.5 | ±0.4 | ±4 | 18 | 33.528×7.112×1.27 |
| SNSD-204-003265 | 0.3-26.5 | 1.5 | 11 | ±0.5 | ±6 | 16 | 33.528×7.112×1.27 |
| SNSD-204-005400 | 0.5-40 | 1.7 | 7.5 | ±0.5 | ±7 | 16 | 15.9496×7.493×1.27 |
| QWP04N008025-01 | 0.8-2.5 | 1.3 | 0.7 | ±0.2 | ±4 | 20 | 5.67×5.07×1.2 |
| SNSD-204-010180 | 1-18 | 1.5 | 2.5 | ±0.4 | ±3 | 17 | 13.208×5.1816×1.27 |
| SNSD-204-010265 | 1-26.5 | 1.6 | 2.8 | ±0.5 | ±4 | 17 | 13.208×5.1816×1.27 |
| SNSD-204-010400 | 1-40 | 1.7 | 5 | ±0.6 | ±5 | 17 | 13.208×5.1816×1.27 |
| QWP04N020180-01 | 2-18 | 1.5 | 1.9 | ±0.2 | ±5 | 18 | 6×5.6×1.2 |
| QWP04N060180-01 | 6-18 | 1.5 | 1.2 | ±0.2 | ±4 | 18 | 3.3×5.6×1.2 |
| SNSD-204-060265 | 6-26.5 | 1.6 | 1.9 | ±0.3 | ±3 | 16 | 3.81×6.985×1.27 |
| SNSD-204-060400 | 6-40 | 1.65 | 2.5 | ±0.6 | ±5 | 16 | 3.81×6.985×1.27 |
| SNSD-204-100265 | 10-26.5 | 1.6 | 1.9 | ±0.4 | ±3 | 18 | 3.81×6.985×1.27 |
| SNSD-204-100400 | 10-40 | 1.65 | 2.5 | ±0.5 | ±4 | 16 | 3.81×6.985×1.27 |
| SNSD-204-180265 | 18-26.5 | 1.6 | 1.7 | ±0.4 | ±3 | 18 | 3.81×5.2324×1.27 |
| SNSD-204-180400 | 18-40 | 1.7 | 2.3 | ±0.5 | ±4 | 17 | 3.81×5.2324×1.27 |
