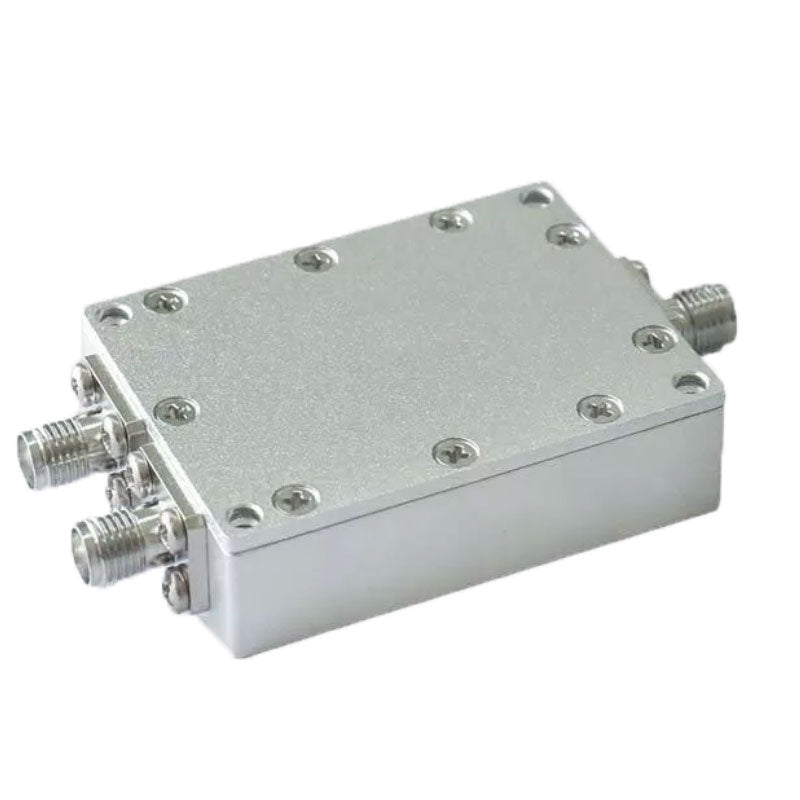

2 Way Power Divider
2 Way Power Divider
| Model | Operating Frequency (GHz) | VSWR | Insertion Loss (dB) | Amplitude Balance (dB) | Phase Balance (deg) | Isolation (dB) | Dimensions (L×W×H, cm) |
|---|---|---|---|---|---|---|---|
| QWP02N001001-01GC | 0.09-0.11 | 1.3 | 0.65 | ±0.2 | ±3 | 20 | 2.5×3×1.2 |
| SNSD-202-003180 | 0.3-18 | 1.5 | 2.8 | ±0.4 | ±5 | 16 | 29.21×4.445×1.27 |
| SNSD-202-004265 | 0.4-26.5 | 1.5 | 1.9 | ±0.3 | ±4 | 16 | 15.748×2.3416×1.27 |
| SNSD-202-005080 | 0.5-8 | 1.4 | 1 | ±0.2 | ±3 | 16 | 14.9098×2.3416×1.27 |
| SNSD-202-005180 | 0.5-18 | 1.4 | 1.5 | ±0.3 | ±4 | 16 | 14.9098×2.3416×1.27 |
| SNSD-202-005265 | 0.5-26.5 | 1.5 | 1.9 | ±0.4 | ±4 | 16 | 14.9098×2.3416×1.27 |
| SNSD-202-005400 | 0.5-40 | 1.6 | 3.5 | ±0.5 | ±6 | 16 | 14.9098×2.3416×1.27 |
| SNSD-202-020180 | 2-18 | 1.4 | 1 | ±0.3 | ±3 | 16 | 4.5466×2.3416×1.27 |
| QWQWP02N020180-01GC | 2-18 | 1.4 | 1 | ±0.2 | ±3 | 18 | 4×2.5×1.2 |
| QWP02N060180-01GC | 6-18 | 1.4 | 0.7 | ±0.2 | ±3 | 18 | 2.5×3×1.2 |
| SNSD-202-060180 | 6-18 | 1.4 | 0.8 | ±0.2 | ±3 | 18 | 2.921×2.6924×1.27 |
| SNSD-202-060265 | 6-26.5 | 1.5 | 1.2 | ±0.3 | ±4 | 17 | 2.921×2.6924×1.27 |
| SNSD-202-060400 | 6-40 | 1.6 | 1.5 | ±0.4 | ±5 | 16 | 2.921×2.6924×1.27 |
| SNSD-202-100265 | 10-26.5 | 1.5 | 1.2 | ±0.3 | ±4 | 18 | 2.921×2.6924×1.27 |
| SNSD-202-100400 | 10-40 | 1.6 | 1.5 | ±0.3 | ±5 | 17 | 2.921×2.6924×1.27 |
| QWP02N160200-01GC | 16-20 | 1.5 | 0.8 | ±0.2 | ±3 | 18 | 1.5×3×1.2 |
| SNSD-203-180265 | 18-26.5 | 1.6 | 1.4 | ±0.5 | ±5 | 18 | 3.429×4.318×1.27 |
| SNSD-202-180400 | 18-40 | 1.8 | 2.1 | ±0.7 | ±8 | 16 | 3.429×4.318×1.27 |
| QWP02N200300-01GC | 20-30 | 1.5 | 1.1 | ±0.2 | ±3 | 18 | 1.5×3×1.2 |
