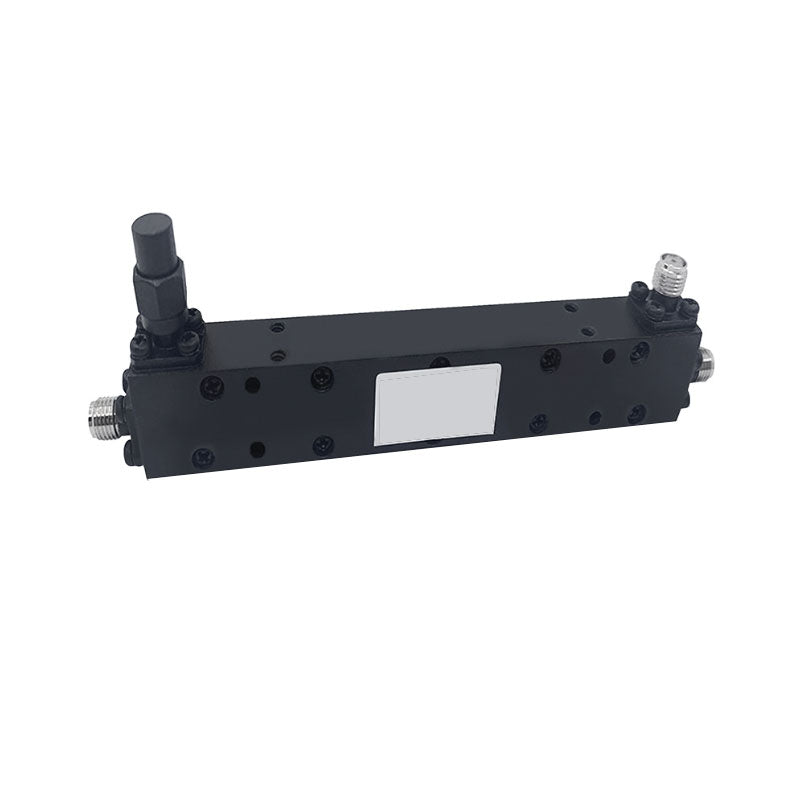

10dB Directional Coupler
10dB Directional Coupler
| Model | Operating Frequency (GHz) | Nominal Coupling (dB) | Flatness (dB) | Insertion Loss (dB) | Main Line VSWR | Coupled Port VSWR | Directivity (dB) | Dimensions (L×W×H, cm) |
|---|---|---|---|---|---|---|---|---|
| SNSD-310-0030 | 0.38-6 | 10±0.5 | ±1.0 | 1.25 | 1.25 | 1.1 | 15 | 13.97×1.27×1.7 |
| SNSD-310-0042 | 0.4-20 | 10±0.6 | ±1.2 | 1.4 | 1.4 | 1.7 | 14 | 13.97×1.27×1.7 |
| SNSD-310-0050 | 0.5-8 | 10±0.4 | ±0.8 | 1.25 | 1.25 | 1.2 | 20 | 11.176×1.27×1.27 |
| SNSD-310-0052 | 0.5-26.5 | 10±0.8 | ±1.0 | 1.4 | 1.4 | 2.2 | 14 | 11.176×1.27×1.27 |
| SNSD-310-0054 | 0.5-40 | 10±0.9 | ±1.5 | 1.7 | 1.7 | 2.9 | 10 | 11.176×1.27×1.27 |
| SNSD-310-0102-20 | 1-20 | 10±0.4 | ±0.4 | 1.4 | 1.4 | 1.4 | 16 | 7.336×1.27×1.6 |
| SNSD-310-0102-26.5 | 1-26.5 | 10±0.5 | ±0.5 | 1.4 | 1.4 | 1.6 | 14 | 7.336×1.27×1.6 |
| SNSD-310-0104 | 1-40 | 10±0.6 | ±0.9 | 1.7 | 1.7 | 2.5 | 10 | 8.89×1.27×1.78 |
| SNSD-310-0601 | 6-18 | 10±0.3 | ±0.4 | 1.3 | 1.3 | 0.9 | 16 | 3.175×1.27×1.6 |
| SNSD-310-0602 | 6-26.5 | 10±0.4 | ±0.5 | 1.4 | 1.4 | 1.4 | 16 | 3.175×1.27×1.6 |
| SNSD-310-0604 | 6-40 | 10±0.5 | ±0.7 | 1.6 | 1.6 | 1.7 | 12 | 3.175×1.27×1.6 |
| SNSD-310-1004 | 10-40 | 10±0.5 | ±0.7 | 1.6 | 1.6 | 1.7 | 12 | 3.175×1.27×1.6 |
| SNSD-310-1802 | 18-26.5 | 10±0.3 | ±0.4 | 1.4 | 1.4 | 1.4 | 14 | 3.175×1.27×1.6 |
| SNSD-310-1804 | 18-40 | 10±0.5 | ±0.5 | 1.7 | 1.7 | 1.7 | 12 | 3.175×1.27×1.6 |
| SNSD-310-2654 | 26.5-40 | 10±0.5 | ±0.5 | 1.7 | 1.7 | 1.7 | 13 | 3.175×1.27×1.6 |
