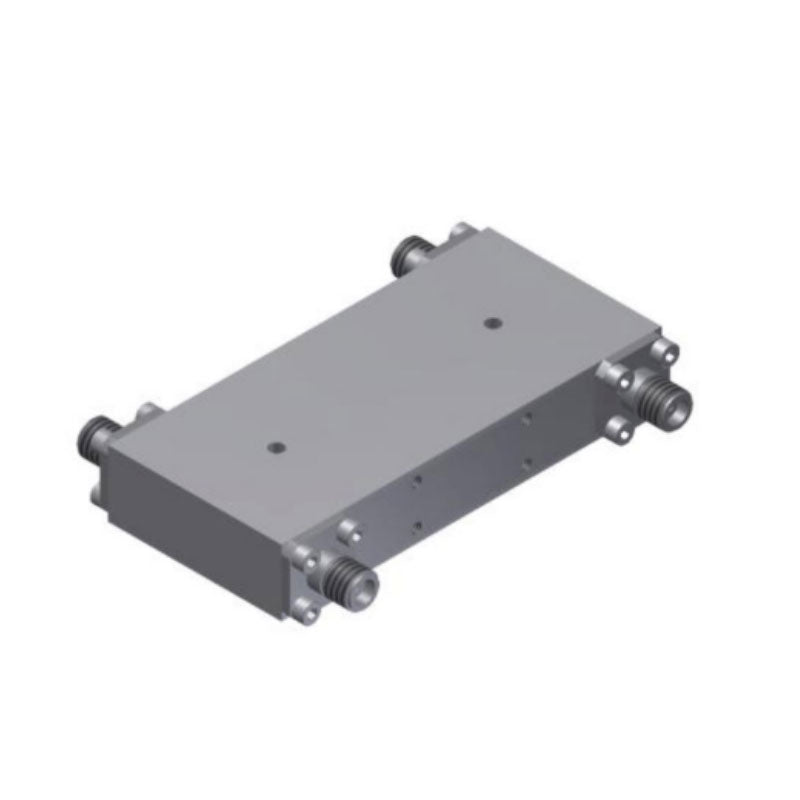

180° Microstrip Bridge
180° Microstrip Bridge
| Model | Operating Frequency (GHz) | VSWR | Insertion Loss (dB) | Amplitude Balance (dB) | Phase Balance (deg) | Isolation (dB) | Dimensions (L×W×H, cm) |
|---|---|---|---|---|---|---|---|
| SNSD-8-007-006 | 0.75-6 | 1.4 | 2 | ±0.6 | ±7 | 20 | 16.891×4.191×1.27 |
| SNSD-8-007-124 | 0.75-12.4 | 1.6 | 3 | ±0.6 | ±8 | 20 | 16.891×4.191×1.27 |
| SNSD-8-007-180 | 0.75-18 | 1.6 | 4.6 | ±0.6 | ±10 | 20 | 16.891×4.191×1.27 |
| SNSD-8-010-124 | 1-12.4 | 1.6 | 2.1 | ±0.4 | ±10 | 17 | 14.986×4.445×1.27 |
| SNSD-8-010-180 | 1-18 | 1.7 | 2.9 | ±0.6 | ±12 | 15 | 14.986×4.445×1.27 |
| SNSD-8-020-124 | 2-12.4 | 1.5 | 1.8 | ±0.5 | ±8 | 17 | 7.874×3.429×1.27 |
| SNSD-8-020-180 | 2-18 | 1.6 | 2 | ±0.6 | ±10 | 16 | 7.874×3.429×1.27 |
| SNSD-8-040-124 | 4-12.4 | 1.4 | 0.9 | ±0.4 | ±6 | 18 | 7.874×3.429×1.27 |
| SNSD-8-040-180 | 4-18 | 1.6 | 1.8 | ±0.7 | ±8 | 15 | 6.858×3.556×1.27 |
| SNSD-8-060-124 | 6-12.4 | 1.4 | 1.4 | ±0.4 | ±5 | 18 | 6.858×3.556×1.27 |
| SNSD-8-060-180 | 6-18 | 1.6 | 1.5 | ±0.6 | ±8 | 15 | 4.064×3.175×1.27 |
| SNSD-8-060-265 | 6-26.5 | 1.7 | 1.6 | ±0.7 | ±11 | 14 | 4.064×3.175×1.27 |
| SNSD-8-060-400 | 6-40 | 1.8 | 3.5 | ±1.2 | ±12 | 13 | 4.064×3.175×1.27 |
| SNSD-8-100-400 | 10-40 | 1.8 | 3.5 | ±1.2 | ±12 | 14 | 4.064×3.175×1.27 |
| SNSD-8-180-400 | 18-40 | 1.8 | 3.5 | ±1.2 | ±12 | 14 | 4.064×3.175×1.27 |
| SNSD-8-265-400 | 26.5-40 | 1.7 | 3.5 | ±1.2 | ±12 | 14 | 4.064×3.175×1.27 |
